Executive Summary: Polyvinyl Chloride (PVC) and Unplasticized PVC (uPVC) pipelines dominate modern commercial irrigation, chemical processing, and water distribution infrastructure due to their lightweight and cost-effective nature. However, under high-pressure conditions, PVC lines are highly susceptible to hydraulic shock (water hammer), joint stress, and structural fatigue. According to 2026 industrial fluid management benchmarks, structural failure in commercial piping networks leads to an average 32% spike in operational utility loss and severe compliance penalties if hazardous runoff occurs. This technical release examines why traditional solvent welding is failing under persistent pressure surges and delivers an expert, 5-step operational framework using a professional pvc pipe repair kit to secure cross-linked structural reinforcement without line replacement.

The 2026 Industrial Shift: Why Rigid Glue Fails Under High-Pressure Surges

For years, standard maintenance operations relied on PVC cement or rigid solvent welding to patch small cracks. While efficient for zero-pressure gravity drains, rigid glues lack the tensile flexibility required to handle fluctuating pressure spikes in industrial supply lines. As high-pressure pumps cycle on and off, the resulting vibration causes micro-fractures along rigid glue lines, leading to catastrophic secondary blowouts.

To counteract this, engineering teams in the MRO (Maintenance, Repair, and Operations) sector are moving toward water-activated composite wraps. These modern kits create a flexible, compressed outer sleeve that absorbs dynamic shock loads rather than resisting them rigidly. To explore comprehensive mitigation strategies for varying industrial mediums and diverse piping architectures, review our definitive pillar matrix, The Ultimate Guide to Industrial Pipe Leakage Solutions: Emergency Repair & Long-Term Prevention.

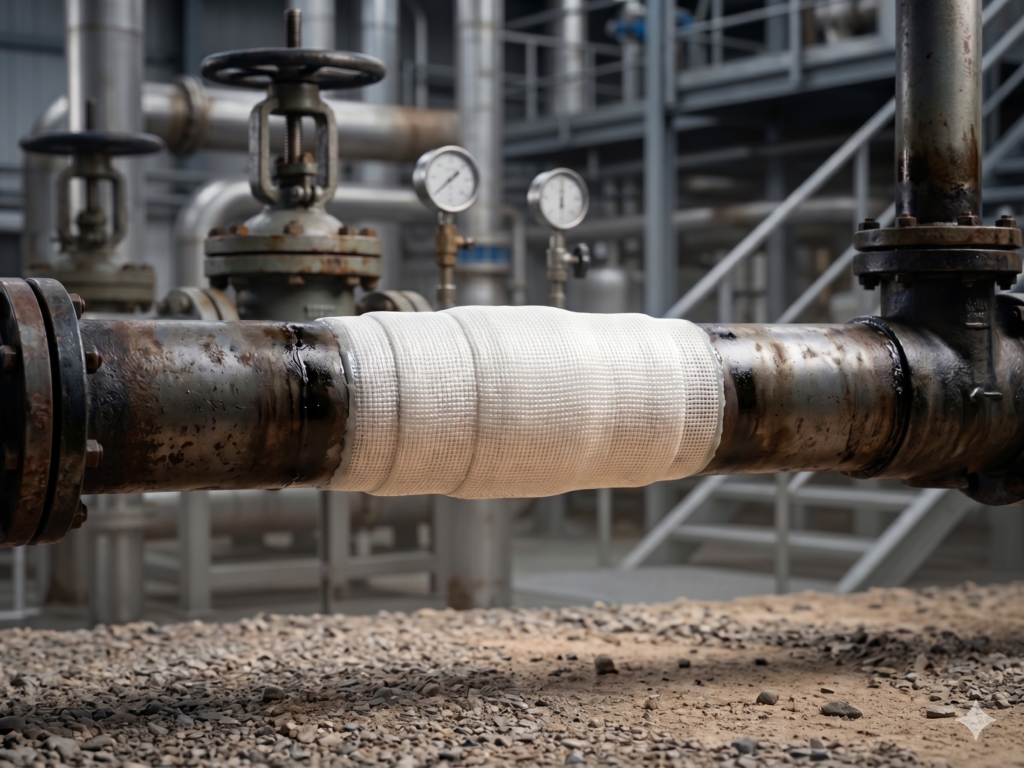

Figure 1: High-pressure water main pipeline reinforced with a professional moisture-cured structural composite sleeve.

Technical Breakdown: The Physics of High-PSI PVC Composite Repair

A heavy-duty pvc pipe repair kit functions as a multi-component containment system. When a pipe cracks, the pressure concentrates at the tips of the fracture. A professional-grade kit controls this failure mechanic through distinct engineering layers:

  • The Viscoelastic Void Filler: An moldable, epoxy compound fills the geometric profile of the crack or pipe joint, eliminating the air pockets that cause localized pressure accumulation.
  • The Hoop Stress Restraint: The outermost layer features a high-weave fiberglass wrap pre-impregnated with a specialized polyurethane matrix. As it cures, it exerts uniform radial pressure (hoop stress resistance), sealing the inner epoxy against the slick plastic surface of the PVC.
  • Interfacial Adhesion: Plastic surfaces possess low surface energy, making bonding difficult. The customized chemical formulations in a professional kit ensure cross-linking without dissolving or melting the wall profile of the underlying PVC.

Engineering Warning: PVC becomes brittle under long-term UV exposure and sub-zero temperatures. When repairing high-pressure outdoor lines, the wrapping material must provide a built-in UV barrier to prevent chemical degradation of both the repair matrix and the pipe itself.

Performance Specifications: Industrial Validation Metrics

Procurement managers, marine operators, and agricultural engineers require concrete data validation before stocking safety inventories. Below are verified engineering criteria for industrial-tier plastic pipe reinforcement:

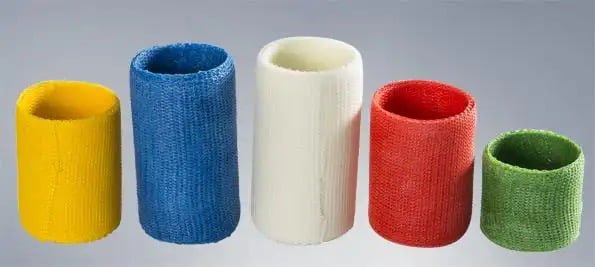

Figure 2: MRO warehousing managers prioritize keeping robust composite repair inventory on hand to prevent expensive utility losses.

The Professional Protocol: 5 Steps to Stop PVC Leaks Under High Pressure

To secure structural permanence on an active high-pressure PVC line, maintenance crews must follow this strict engineering sequence:

  1. Depressurize and Clean: Isolate the leaking segment. Clean the target area to remove slime, dirt, and chemical scaling. The bonding surface must be completely free of grease or dynamic moisture films.
  2. Create a Mechanical Profile: Use 60-grit sandpaper or a medium file to cross-hatch sand the shiny surface of the uPVC/PVC pipe. This increases the surface area and creates an anchor texture for the structural adhesive layer.
  3. Pack the Primary Adhesive Compound: Roll and blend the high-adhesion epoxy putty from your pvc pipe repair kit until uniform in color. Press it firmly directly into the puncture point or joint gap, tapering the edges smooth against the pipe body.
  4. Activate and Tension Wrap: Submerge the resin-loaded fiberglass bandage in water for 5 to 10 seconds, then squeeze gently. Begin wrapping tightly 2 inches before the leak. Maintain persistent, high tension while overlapping each wrap by 50% until you form an 8-to-12-layer structural jacket.
  5. Compress and Cure: Wet your hands and smooth the wrap structure firmly in the direction of the spiral wrap. This consolidates the resin matrix and expels micro-bubbles. Wait 30 minutes for the composite to fully cross-link before running pressure back into the line.

FABE Value Realization: Sourcing the Andarepair System

Industrial supply chains require transparent performance validation over generic hardware options. This is why commercial distributors trust the Andarepair system:

  • Features: Our specialized pvc pipe repair kit includes specialized low-surface-energy adhesive fillers paired with water-cured polyurethane composite bindings capable of performing under wet environments.
  • Advantages: Engineered with premium polymer formulations, it bypasses the common brittle failures of PVC glue, delivering long-term resistance to extreme seasonal thermal shifts and mechanical line vibration.
  • Benefits: Eliminates the massive material and labor expenditures of trench excavation, specialized piping re-alignment, and extended plant shutdowns, providing an instant ROI for plant engineering leads.
  • Evidence: Extensively field-proven across municipal drainage systems, agricultural networks, and harsh mineral milling processing sites worldwide. Supported by comprehensive MSDS profiles and standard burst testing records.

Partner with an Elite Industrial MRO Supply Chain Innovator

Are you an industrial procurement manager, regional infrastructure distributor, or international ship chandler seeking verified, high-volume pipe repair supplies? Andarepair offers competitive wholesale commercial pricing structures, custom product array bundling, and expert OEM / Private Label manufacturing support.

Secure Bulk Pricing & Free Field Samples Now

Direct Technical Support Line via Senior Export Management: Phone / WhatsApp: +86 18753386785 | Full technical datasheets (TDS) supplied immediately upon commercial inquiry.
