The Ultimate Guide to Industrial Pipe Leakage Solutions: Emergency Repair & Long-Term Prevention

HDPE & Polyethylene Pipe Leaks

High-density polyethylene is prized in water distribution and gas gathering networks for its flexibility and corrosion resistance, but its low-surface-energy plastic makes standard adhesives ineffective. A dedicated HDPE pipe leakage solution depends on a specialized adhesion-promoting primer that etches the polymer surface at a microscopic level, allowing the composite resin to form a genuine mechanical bond rather than sitting loosely on top.

Because HDPE expands and contracts more than metal under thermal cycling, the reinforcing wrap must retain a degree of flexibility post-cure to avoid delamination. For split seams or stress-cracked joints common in buried HDPE mains, technicians should extend the wrap at least two pipe diameters beyond the damage zone on each side to accommodate the material's elastic movement.

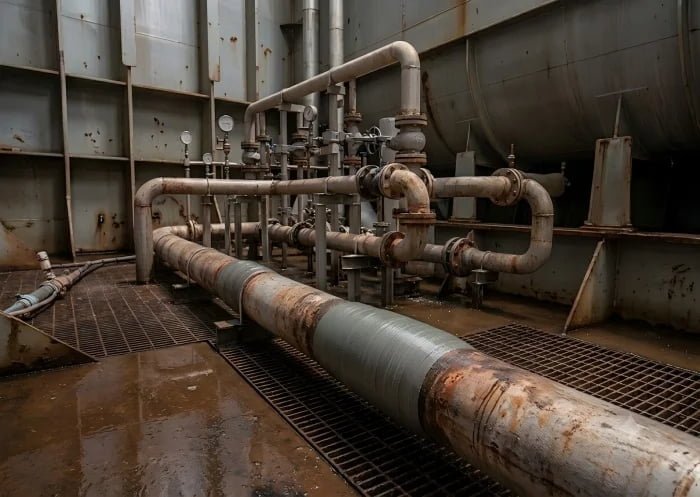

Steel Pipe Repair (Carbon & Stainless)

Steel piping failures are almost always corrosion-driven -- pitting, wall thinning at weld seams, or erosion at elbows and tees. A proper steel pipe repair kit begins with mechanical abrasion (typically an angle grinder with a flap disc or grit blast) to reach bright metal, removing all rust, mill scale, and coating residue, since resin adhesion to steel fails almost exclusively due to inadequate surface prep.

For actively corroding steel, an anti-corrosion primer is applied before wrapping to prevent under-film rust migration that would eventually undermine the bond. Steel's high stiffness and thermal stability also make it the ideal substrate for the highest pressure-rated laminates -- up to and including the full 20 bar structural class -- since the substrate itself won't deform or creep under sustained hoop load the way plastics can.

PVC & CPVC Pipe Leaks

PVC and CPVC are common in chemical dosing lines, cooling water systems, and low-pressure process piping, but both are heat-sensitive and prone to stress cracking at threaded joints and solvent-welded fittings. A PVC pipe repair kit must use a low-exotherm resin formulation -- high-heat-cure epoxies can soften or distort the pipe wall during cure, creating a new leak path where none existed before.

Surface prep for PVC focuses on light sanding to remove the glossy extrusion skin and degreasing with an approved solvent wipe, since PVC does not corrode but does accumulate surface contaminants from UV exposure and chemical splash. Because PVC systems typically operate below 10 bar, a single-layer or two-layer wrap configuration is usually sufficient -- always confirmed against the kit's layer chart for the specific pipe schedule and diameter.

Slurry Pipeline Wear & Erosion Repair

Slurry pipelines in mining, mineral processing, and dredging operations transport high-density solid-liquid mixtures that produce a distinct failure mode: localized abrasive wear rather than uniform corrosion. Turbulent flow at elbows, tees, reducers, and pump discharge lines accelerates particle impingement, causing wall thinning that can progress from a hairline weep to a full-bore rupture in a matter of weeks under continuous duty cycles. A slurry pipeline repair solution must therefore account for both the mechanical erosion pattern and the underlying substrate, which is typically carbon steel, rubber-lined steel, or HDPE.

Surface preparation on eroded steel slurry lines requires grinding back any remaining scale and feathering the thinned wall profile to a sound edge before priming, since abrasive wear often leaves an irregular, pitted surface that traps residue and compromises resin bond strength. On rubber-lined sections, the composite wrap is applied over the exposed steel jacket at the failure point after the damaged liner is trimmed back, restoring hoop strength without requiring a full liner replacement.

Because erosion zones tend to cluster at predictable high-turbulence locations, a reinforced wrap should extend generously past the visible thin-wall area -- typically 1.5 to 2 pipe diameters -- to cover the surrounding wall that is already in an advanced but less visible stage of wear. High-fiber-density laminate layers are recommended in these zones to compensate for the continued low-level erosion that will persist for the service life of the repair, and periodic ultrasonic wall-thickness checks are advised to monitor the repaired section alongside adjacent unworn pipe.
