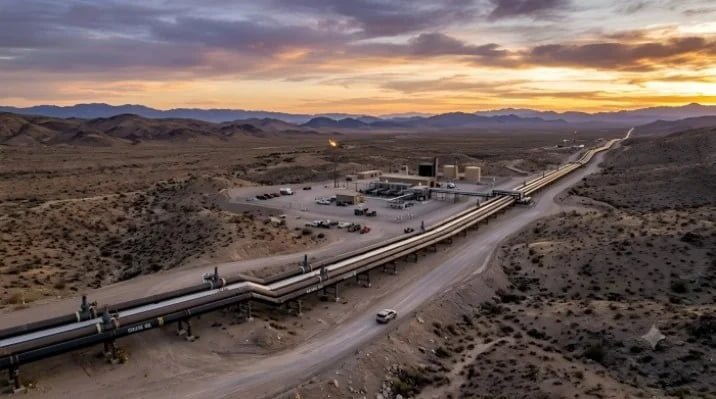

Fiberglass Composite Bandage Solutions for Oil & Gas Pipeline Transportation
High-strength structural repair technology engineered for critical pipeline infrastructure in petroleum transmission systems
Critical Applications in Oil & Gas Infrastructure
Proven solutions for pipeline integrity challenges across upstream, midstream, and downstream operations
Corrosion Damage Repair
Structural reinforcement for external corrosion, pitting, and wall thickness loss in carbon steel and alloy pipelines
- • CUI (Corrosion Under Insulation) remediation
- • Atmospheric corrosion zones
- • Soil-side external corrosion
Leak Sealing & Emergency Repair
Rapid response solutions for pinhole leaks, through-wall defects, and active seepage in pressurized systems
- • Live leak containment capability
- • Zero production downtime
- • Temporary or permanent repair
Mechanical Damage Restoration
Reinforcement for gouges, dents, impact damage, and external interference from excavation or equipment contact
- • Third-party damage incidents
- • Dent-gouge combinations
- • Construction-related impacts
Weld Defect Reinforcement
Structural overlay for substandard welds, HAZ (Heat Affected Zone) cracking, and girth weld anomalies
- • Hydrogen-induced cracking zones
- • Incomplete penetration defects
- • Weld toe cracking
High-Temperature Service Lines
Thermal-resistant repairs for hot oil transmission, heated crude pipelines, and process piping up to 200°C
- • Steam-traced pipeline systems
- • Thermal expansion stress areas
- • Hot wellhead connections
Preventive Reinforcement
Proactive strengthening for aging infrastructure, predicted failure zones, and asset life extension programs
- • ILI (In-Line Inspection) findings mitigation
- • Pre-failure intervention
- • Integrity management compliance
Engineering Advantages Over Traditional Methods
Data-driven performance benefits for pipeline operators and maintenance teams
Operational Benefits
Zero Hot Work Requirement
Eliminate welding permits, fire watch, and hot work safety protocols in explosive atmospheres
Minimal Production Downtime
Repair under pressure with no depressurization or product drainage required
Rapid Installation
Complete repair in 2-4 hours vs. days for welded solutions; full cure in 24 hours
Remote Location Capable
No heavy equipment, power supply, or specialized welding crews required
Technical Benefits
Superior Corrosion Resistance
Chemically inert composite matrix provides long-term protection against H2S, CO2, and chlorides
High Strength-to-Weight Ratio
E-glass reinforcement delivers 400+ MPa tensile strength at 1/4 the weight of steel
Thermal Compatibility
Coefficient of thermal expansion matches steel substrate for stress-free performance
Code-Compliant Design
Meets ASME PCC-2 Article 4.1, ISO 24817, and API 579-1/ASME FFS-1 standards
Technical Specifications & Performance Data
Engineering-grade materials designed for demanding petroleum service environments
Material Properties
Operating Parameters
Applicable Pipe Sizes
- 2" to 48" (50-1200 mm) diameter
- Schedule 40, 80, 160
- ANSI 150-600 Class
Compatible Substrates
- Carbon Steel (API 5L, ASTM A106)
- Stainless Steel (304, 316)
- Alloy Steel (Chrome-Moly)
Compliance Standards
- ASME PCC-2 Article 4.1
- ISO 24817
- API 579-1/ASME FFS-1
Field-Proven Case Studies
Real-world applications in critical oil and gas infrastructure

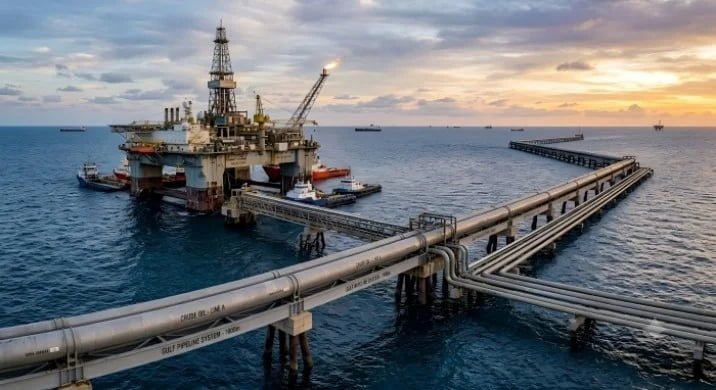

Corrosion Repair on 16" Crude Oil Export Line
External corrosion under damaged coating resulted in 40% wall loss over 200mm length. Platform couldn't shut down for hot work. Composite bandage restored structural integrity within 8 hours with zero production interruption.
Emergency Leak Repair on Natural Gas Pipeline
Pinhole leak from external corrosion detected during patrol inspection. Composite repair executed on live pressurized gas line in remote location with 2-person crew. Line remained in service throughout repair process.

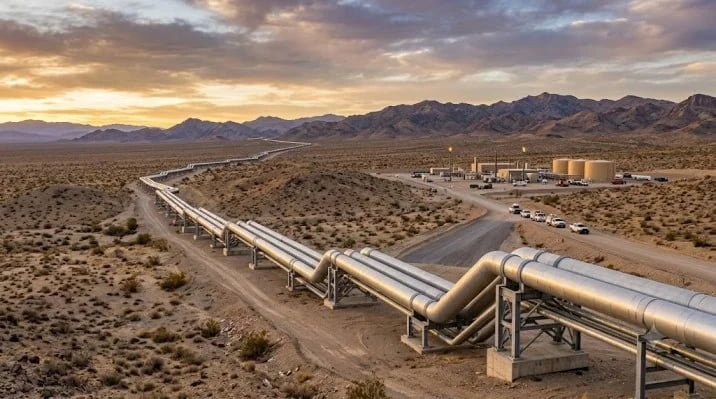

High-Temperature Crude Transfer Line Reinforcement
Ultrasonic inspection revealed 35% wall thinning at support saddle location due to flow-accelerated corrosion. High-temperature composite system applied during unit turnaround, eliminating need for spool replacement.
Installation Process Overview
Streamlined application procedure for field technicians
Surface Preparation
Abrasive blast or wire brush to SSPC-SP3/NACE No. 3 standard. Remove all loose scale, rust, and contaminants.
Primer Application
Apply epoxy primer to ensure adhesion. Fill any pits or surface irregularities with putty.
Bandage Wrapping
Activate bandage and wrap circumferentially with 50% overlap. Apply calculated number of layers per design.
Curing & Inspection
Allow 24-hour ambient cure. Perform visual inspection and document repair per QC procedures.
Engineering Design Requirement
All repairs must be designed by qualified engineer per ASME PCC-2 Article 4.1 requirements. Design calculations should consider pipe diameter, wall thickness, defect dimensions, operating pressure, and temperature. Contact our engineering team for design assistance.
Ready to Implement Composite Repair Solutions?
Our engineering team provides technical support including design calculations, installation training, and compliance documentation for your pipeline integrity program.
