How to Seal a Leaking Industrial Steel Pipe: The Complete Steel Pipe Repair Kit Guide
Executive Summary: In modern industrial manufacturing, chemical processing, and municipal infrastructure, unexpected pipeline corrosion is no longer just a maintenance headache—it is a major financial risk. According to 2026 MRO (Maintenance, Repair, and Operations) industry data, unplanned downtime caused by fluid pipeline failures costs heavy industries an estimated $180,000 per hour in lost productivity. For high-pressure, high-temperature, or corrosive environments, welding is often too dangerous or slow. This comprehensive guide reviews the latest industry shifts toward composite reinforcement and provides a technical walkthrough on utilizing a heavy-duty steel pipe repair kit to stop active leaks without shutting down your entire production line.
The Shift in Industrial MRO: Why Composite Wrapping is Replacing Traditional Welding
For decades, the go-to protocol for a compromised carbon steel or stainless steel pipe was hot work—specifically, cut-and-weld structural replacement. However, global industrial safety regulations and strict environmental compliance have made hot work permits increasingly difficult and expensive to secure, especially in volatile oil, gas, and chemical processing facilities.
The market trend in 2026 has firmly pivoted toward advanced composite wrapping technologies. Engineering teams are prioritizing non-invasive, rapid-curing materials that can restore structural integrity to pitting-corroded metal surfaces within minutes. For a holistic view of managing diverse pipeline failures across various materials like steel, HDPE, and PVC, refer to our comprehensive master resource, The Ultimate Guide to Industrial Pipe Leakage Solutions: Emergency Repair & Long-Term Prevention

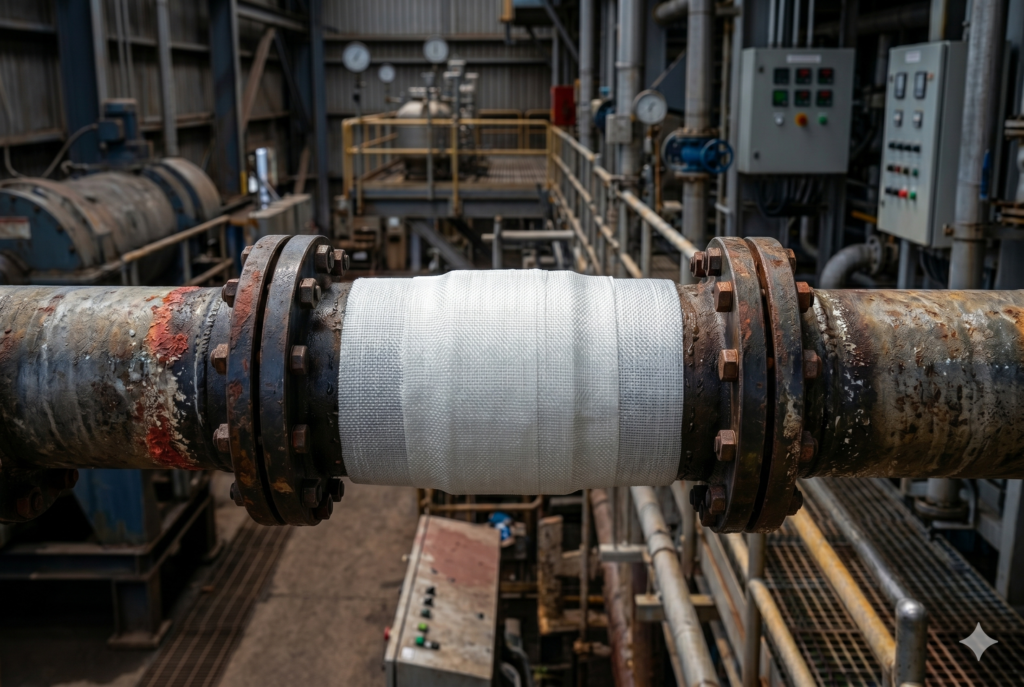

Figure 1: High-pressure steel pipeline undergoing emergency surface reinforcement using advanced composite materials.
Engineering Depth: The Anatomy of a Professional Steel Pipe Repair Kit
A commercial-grade steel pipe repair kit is not a temporary bandage; it is an engineered composite system designed to handle severe dynamic stress. To achieve a maximum pressure seal that can withstand line surges, the kit relies on a multi-layered chemical synergy:
- The Primary Adhesive Layer (Metal Putty/Epoxy): This is a high-density, steel-filled epoxy stick with exceptional Mohs hardness. It is kneaded and packed directly into the pitting hole or weld crack, acting as the primary plug to block fluid escape.
- The Structural Restraint (Water-Activated Fiberglass Bandage): Woven from heavy-duty fiberglass filaments pre-impregnated with specialized polyurethane resin. Upon moisture activation, it cures into a rigid outer exoskeleton, wrapping tightly around the adhesive layer and the steel shell.
- The Interfacial Space Bond: The performance heavily depends on the resin flowing into the microscopic anchor patterns of the blasted steel, anchoring the wrap to prevent sliding under thermal expansion.
Engineering Note: Surface preparation dictates 80% of the composite wrap’s final pressure rating. The target steel substrate must be mechanically abraded to an St2 or Sa2.5 cleanliness standard, leaving a coarse anchor profile for the resin to chemically grip.
Technical Testing: Structural Parameters and Performance Data
Before deploying a steel pipe repair kit across a chemical facility or maritime vessel, procurement officers must verify rigorous laboratory validation metrics. Below are the verified technical tolerances for industrial-grade composite wrapping solutions:
| Technical Parameter | Standard Industrial Value | MRO Field Application Benefit |
|---|---|---|
| Maximum Pressure Resistance | Up to 450 PSI (31 Bar) | Handles high-pressure industrial cooling and slurry line spikes. |
| Curing Time (At 25°C) | 30 Minutes to Full Strength | Minimizes plant shutdown time, allowing quick line repressurization. |
| Shore D Hardness | 85 Shore D | Provides extreme impact resistance against structural wear. |
| Chemical Compatibility | Hydrocarbons, Diluted Acids, Alkaline | Safe for oil refineries, mining tailings, and industrial sewers. |
Figure 2: MRO stockrooms in heavy processing mills maintain an active inventory of composite repair kits to guarantee uninterrupted operations.
Step-by-Step Field Execution Guide for Engineers
To secure a permanent or long-term emergency fix on a steel line using a professional steel pipe repair kit, operators must execute the following precision steps:
- Isolate or Reduce Pressure: If complete isolation is impossible, lower the internal line pressure as much as possible to ensure the steel putty can cross-link with the substrate without being pushed out by leaking fluid.
- Mechanical Surface Abrasion: Use a wire brush, angle grinder, or coarse emery cloth to rough up the steel pipe’s surface around the leak area. Wipe away all residual dust, rust flakes, and grease.
- Apply the Adhesive Plug: Put on protective gloves, cut the required amount of steel-filled epoxy putty, and knead it until a uniform color is achieved. Firmly press the putty into the leak site, contouring it to a smooth profile.
- Activate and Wrap the Bandage: Immerse the fiberglass bandage in water for 5 to 10 seconds. Squeeze out excess moisture. Begin wrapping the bandage 2 inches upstream of the leak, wrapping with high, uniform tension, ensuring a 50% overlap on each layer until a robust thickness (at least 8-10 layers) is formed.
- Mold and Smooth: Wet your gloved hands and smooth the surface of the wrapped wrap in the direction of the wrap to distribute the polyurethane resin evenly. Allow 30 minutes to cure completely before turning the fluid system back on.
FABE Procurement Alignment: Why Source from Andarepair?
Choosing an industrial pipeline維保 supplier requires evaluating more than just item price. Here is how Andarepair delivers undisputed commercial and engineering value to industrial global supply chains:
- Features: Our steel pipe repair kit pairs an industrial-grade, ultra-high-viscosity steel putty adhesive layer with premium, tight-weave fiberglass cloth vacuum-packed in heavy foil.
- Advantages: Unlike generic market wraps, Andarepair resin features a specialized moisture-activation agent that maintains shelf-life stability for up to 24 months, curing completely under submerged or wet conditions.
- Benefits: It cuts emergency maintenance costs by up to 85% compared to calling in certified welding crews, successfully protecting your factory from catastrophic unplanned downtime losses.
- Evidence: Trusted across municipal wastewater utilities, deep-sea vessels, and highly abrasive mining slurry pipelines worldwide, our products pass complete MSDS environmental safety and high-pressure burst testing protocols.
